Solar Panel Gallery
High-efficiency photovoltaic modules engineered for maximum energy output and long-term durability.
Technical Specifications
Industry-leading performance metrics backed by rigorous testing and certifications.
Performance Data
- Maximum Power (Pmax)
- 450W - 550W
- Module Efficiency
- 21.5% - 22.8%
- Operating Voltage (Vmp)
- 40.5V - 41.2V
- Operating Current (Imp)
- 11.1A - 13.3A
- Temperature Coefficient
- -0.34%/°C
Physical Characteristics
- Dimensions (L×W×H)
- 2094×1038×35mm
- Weight
- 24.5 kg
- Cell Type
- Monocrystalline PERC
- Front Glass
- 3.2mm Tempered
- Frame Material
- Anodized Aluminum
- Junction Box
- IP68 Rated
25-Year Warranty
Performance guarantee
IEC Certified
International standards
High Efficiency
Up to 22.8% conversion
Installation Guide
Professional installation made simple. Follow our comprehensive diagrams for optimal setup.
Figure 1: Standard roof mounting configuration
Site Assessment
Evaluate roof structure, orientation, and shading. Ensure load capacity meets requirements (minimum 15 kg/m²).
Mounting System
Install aluminum rails with proper spacing (1038mm centers). Use stainless steel hardware for corrosion resistance.
Panel Placement
Secure panels using mid and end clamps. Maintain 10mm gaps between modules for thermal expansion.

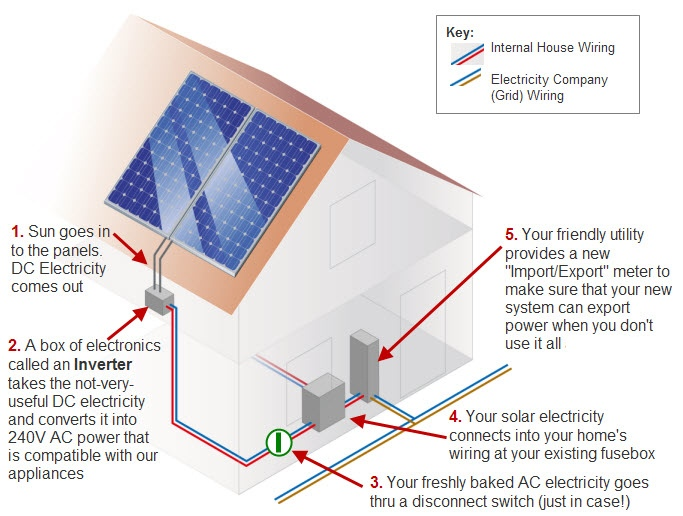

Electrical Connection
Connect MC4 connectors in series/parallel configuration. Follow local electrical codes and grounding requirements.
System Testing
Verify voltage, current, and polarity. Conduct insulation resistance test (>1MΩ) before grid connection.
Mounting Configurations
Multiple installation options to suit your project requirements.

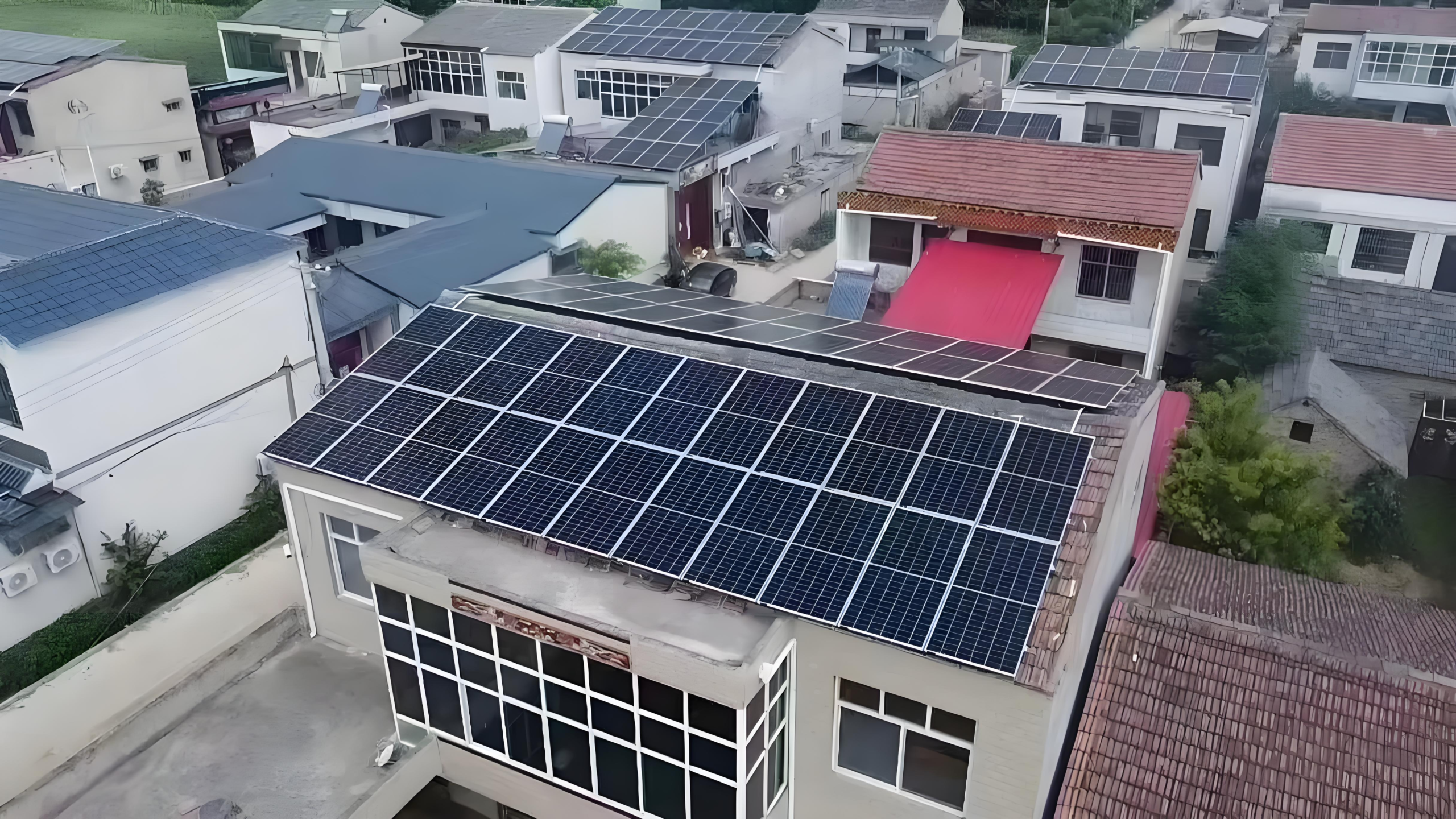

- Pitched Roof: 15-45° tilt angle, portrait or landscape orientation
- Flat Roof: Ballasted or penetrating systems, 10-15° tilt

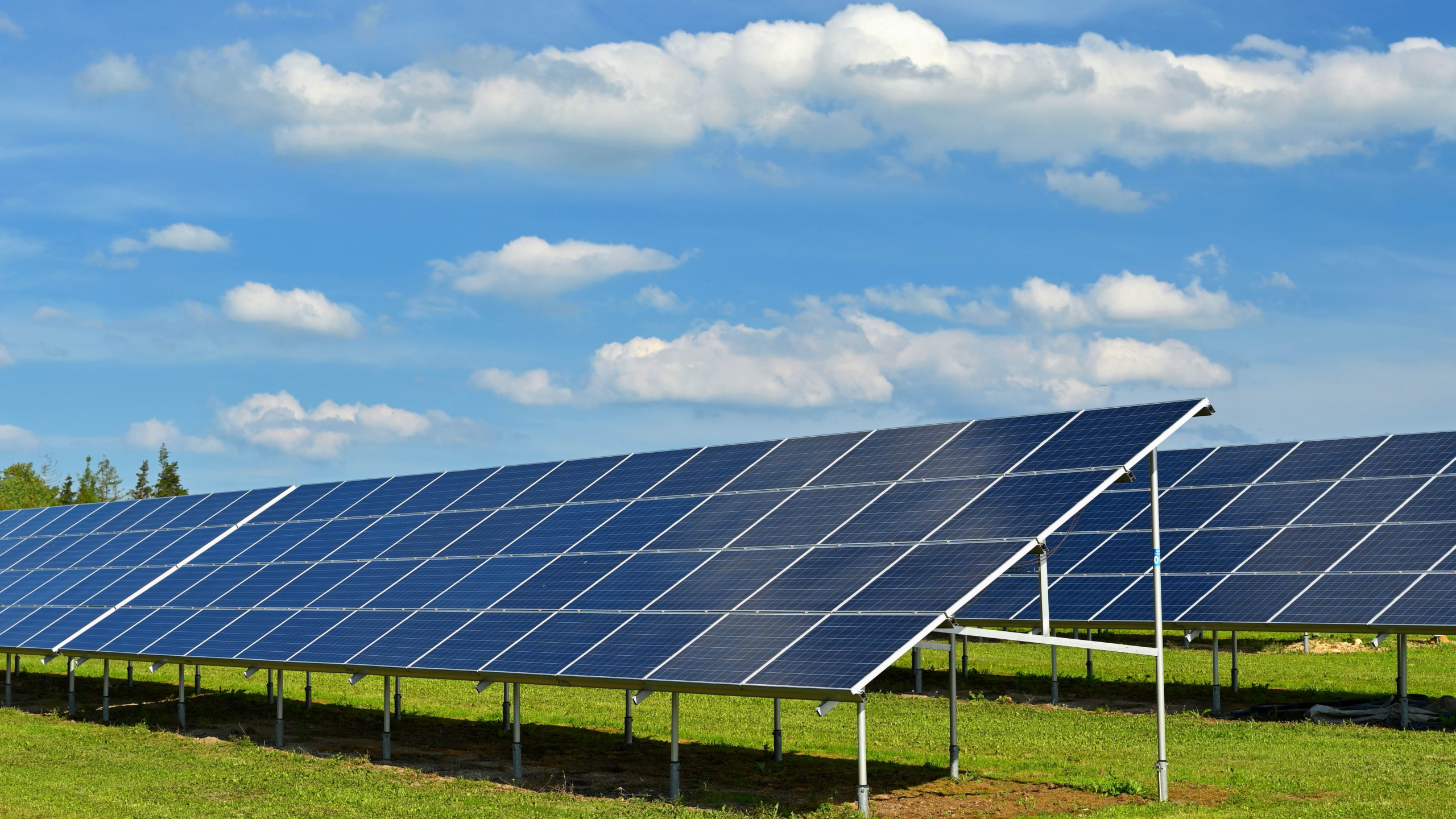

- Ground Mount: Fixed or tracking systems, optimized for latitude
- Carport/Canopy: Elevated structures with dual functionality
Key Features & Benefits
Maximum Power Output
Advanced PERC cell technology delivers up to 550W per module, maximizing energy generation per square meter.
Low-Light Performance
Optimized for performance in diffuse light conditions, ensuring consistent energy production throughout the day.
Extreme Durability
Withstands harsh weather conditions with IP68-rated junction box and reinforced aluminum frame design.
Temperature Resilience
Low temperature coefficient (-0.34%/°C) maintains high efficiency even in hot climates and extreme conditions.
Easy Installation
Pre-drilled mounting holes and standardized dimensions simplify installation, reducing labor costs and time.
Long-Term Savings
25-year linear performance warranty ensures reliable ROI, with guaranteed 84.8% efficiency after 25 years.
Ready to Power Your Future?
Get a customized quote for your solar project. Our team of experts will help you design the optimal system for maximum efficiency and ROI.
Need technical support? Contact our engineering team at solar@example.com
